Swing Door Opener

Optional Accessories
optional Accessories

Technical Datas

Dimensions
518 X 81 X 115mm
Weight
6 kgs
Working Temperature
-20°C ~ + 50°C
Input Voltage
AC 100V - 240V
Output Voltage
24V DC (±10%), 3A
Open Degree
Max 115°
Open Speed
45°/S
Close Speed
45°/S
Opening Time
0-60 Seconds (Adjustable)
Protection Class
IP21

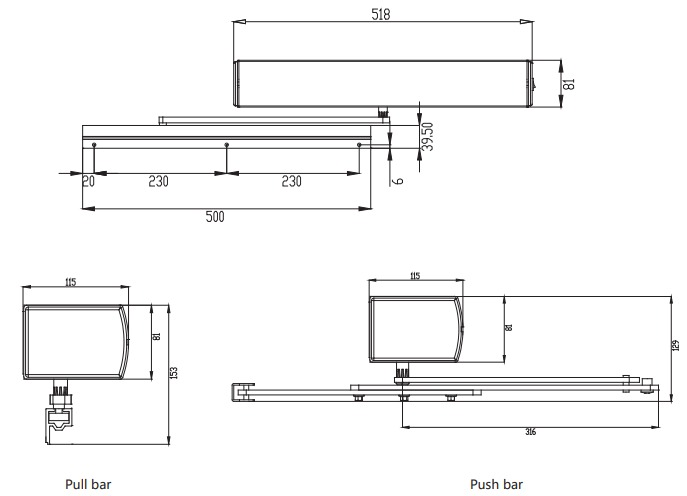

Product Dimensions

Product Dimensions

Function Details

Model
DT-SWD100
MAX Weight
200KGS/Per leaf
Push and go function
Yes
Electronic Lock
Yes
Motor Type
24V Brushless
Holding Time
60 Seconds Max
Microwave Sensor Internal External
Yes
Opening/Closing/Braking Speed
Adjustable
Remote Function
Yes
Interlock Function incase of Double Door
Yes
Synchronous Function incase of Double Door
Yes
Photocell Option
Yes
Access Keypad
Yes
Model
DT-SWD100
MAX Weight
200KGS/Per leaf
Push and go function
Yes
Electronic Lock
Yes
Motor Type
24V brushless
Holding Time
60 Seconds Max
Microwave Sensor Internal External
Yes
Opening/Closing/Braking Speed
Adjustable
Remote Function
Yes
Interlock Function incase of Double Door
Yes
Synchronous Function incase of Double Door
Yes
Photocell Option
Yes
Access Keypad
Yes
