Swing Door Opener
SWD100
Optional Accessories
Technical Datas
Dimensions
475 X 81 X 98mm
Weight
5.5 kgs
Working Temperature
-20°C ~ + 50°C
Input Voltage
AC 100V - 240V
Output Voltage
24V DC (±10%), 3A
Open Degree
Max 110°
Open Speed
45°/S
Close Speed
45°/S
Opening Time
0-60 Seconds (Adjustable)
Protection Class
IP21

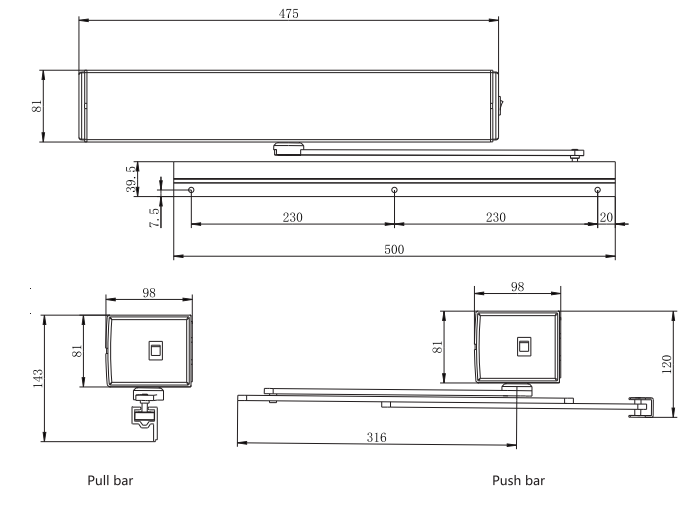

Product Dimensions
Function Details
Model
MAX Weight
100KGS/Per leaf
Push and go function
Yes
Electronic Lock
Yes
Motor Type
24V brushless
Holding Time
20 Seconds Max
Microwave Sensor Internal External
Yes
Opening/Closing/Braking Speed
Adjustable
Remote Function
Yes
Interlock Function incase of Double Door
Yes
Synchronous Function incase of Double Door
Yes
Photocell Option
Yes
Access Keypad
Yes
Model
MAX Weight
100KGS/Per leaf
Push and go function
Yes
Electronic Lock
Yes
Motor Type
24V Brushless
Holding Time
20 Seconds Max
Microwave Sensor Internal External
Yes
Opening/Closing/Braking Speed
Adjustable
Remote Function
Yes
Interlock Function incase of Double Door
Yes
Synchronous Function incase of Double Door
Yes
Photocell Option
Yes
Access Keypad
Yes
