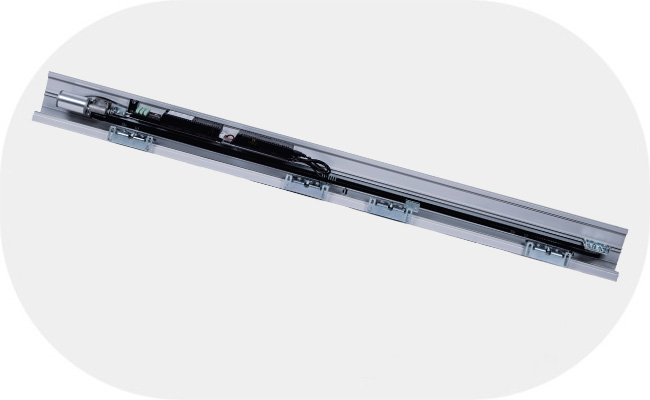

Slide Door Opener

Special functions for SD-9E

  • The controller of SD-9E comply with EN 16005
  • Battery charger is built-in.
  • Alarm for low power of battery.
  • Erro display(working with FC10)

Technical Datas

Max door weight(single)
1 × 150kgs
Max door weight(double)
2 × 140kgs
Door leaf weight
700-1300mm
Opening speed
150-500mm/s(Adjustable)
Closing speed
100-450mm/s(Adjustable)
Square motors
-24v 55w brushless DC motors
Opening time
0-9second(Adjustable)
Voltage
AC 90-250v 50Hz-60Hz
Operating Temperature
-20℃-70℃;

Function Working Model

Automatic
Always Open
Partial Open
Full Lock
One Way
Self-learning
Self-lock
Error message
Anti-clamp function
Fire Alarm Terminal
Access Keypad Terminal
Inter Lock Function
LED display
Photocell
UPS
Electronic lock
OEM Service
CE certification

●: standard function ○: optimal fuction –: no function

Features

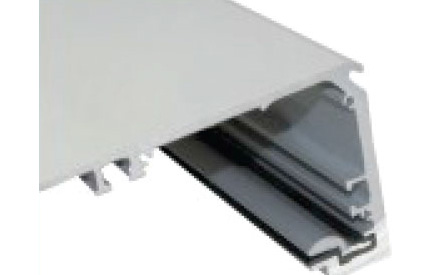

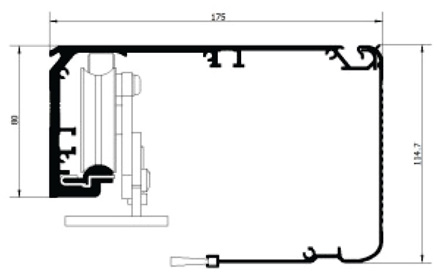

Special track and cover design

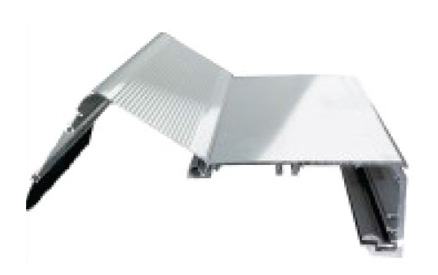

Metal side cover, suitable for narrow place

Rubber design, less noise

Built-in photocell

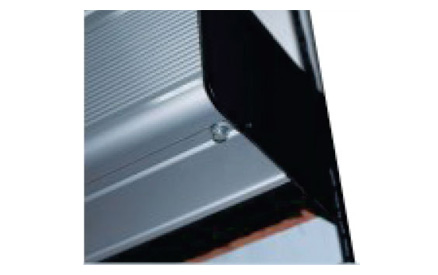

Hair brush on cover

Built-in function receiver

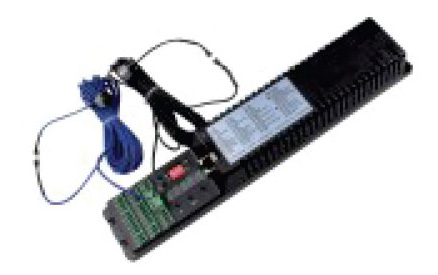

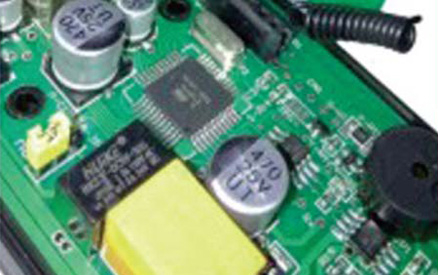

CONTROLLER

MOTOR

PULLEY

BELT CONNECTOR

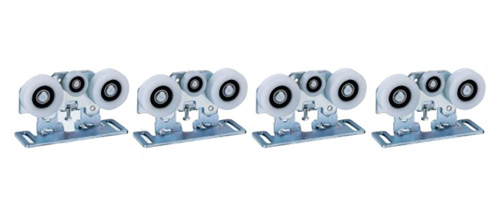

HANGER

STOPPER

BELT

POWER LINE

PHOTOCELL

MICROWAVE SENSOR

REMOTE CONTROL
