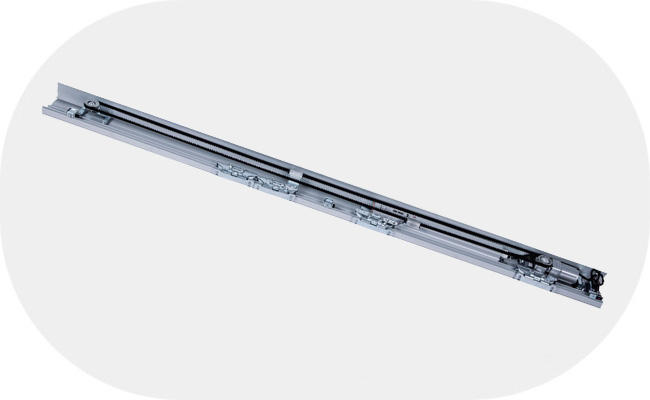

Slide Door Opener
SD-2
Technical Datas
Max door weight(single)
1 × 150kgs
Max door weight(double)
2 × 140kgs
Door leaf weight
700-1300mm
Opening speed
150-500mm/s(Adjustable)
Closing speed
100-450mm/s(Adjustable)
Square motors
-24v 55w brushless DC motors
Opening time
0-9second(Adjustable)
Voltage
AC 90-250v 50Hz-60Hz
Operating Temperature
-20℃-70℃;
Function Details
Automatic
●
Always Open
●
Partial Open
●
Full Lock
●
One Way
●
Self-learning
●
Self-lock
●
Error message
●
Anti-clamp function
●
Fire Alarm Terminal
●
Access Keypad Terminal
●
Inter Lock Function
●
LED display
●
Photocell
○
UPS
○
Electronic lock
○
OEM Service
●
CE certification
●
●: standard function ○: optimal fuction –: no function
CONTROLLER
MOTOR

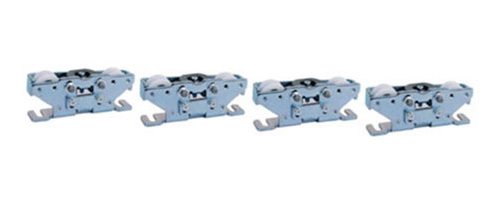

HANGER
POWER SWITCH
PULLEY
BELT CONNECTOR
STOPPER
