Sliding Gate Motors

Model

Technical Featues

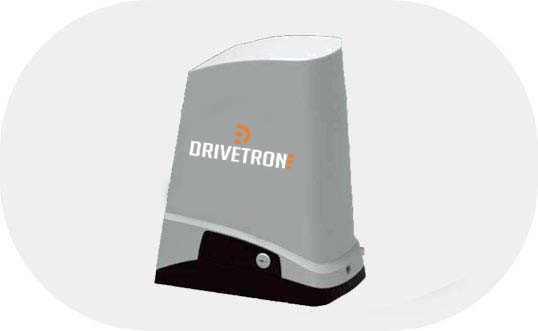

DT 700
Peak Thrust
23 N.m
Power
370W
Supply Voltage
AC230V 50Hz
Maximum Gate Weight
700kg
Operating Temperature
-20℃~+50℃;

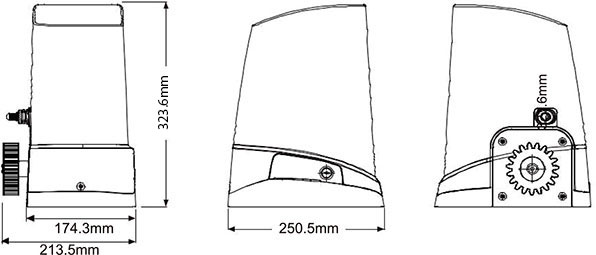

Dimension (mm)
250.5 × 213.5 × 323.6
Speed
17.4 cm/sec
Protection Grade (IP)
IP54

The source of power to switch on the capacitor for the opeartion start via the AC motor, which cancel the transformer and battery usage of general DC motor systems.

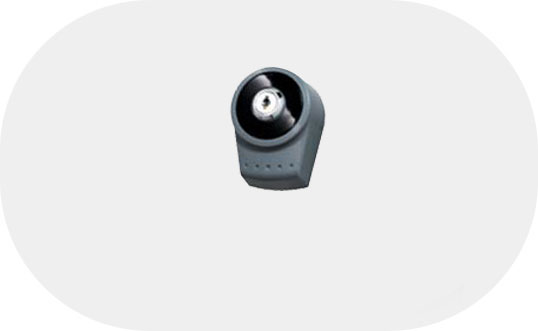

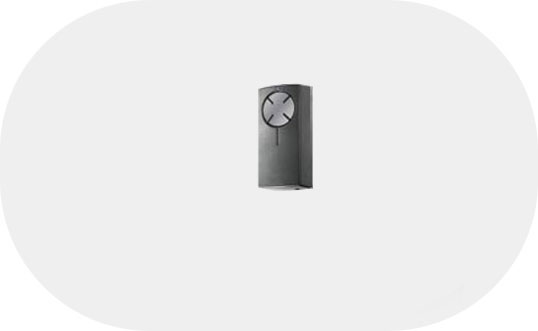

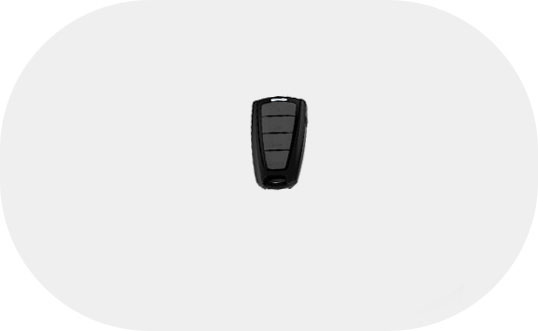

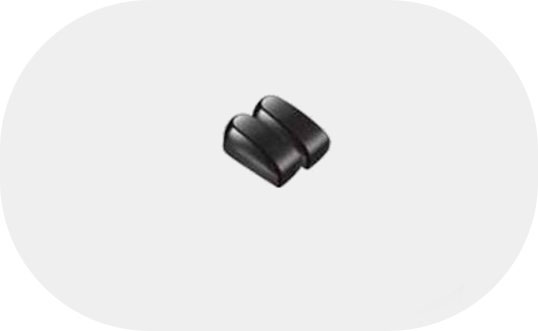

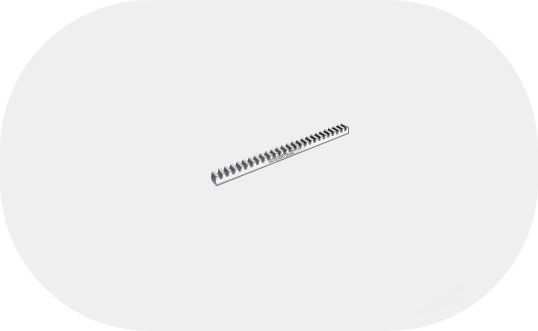

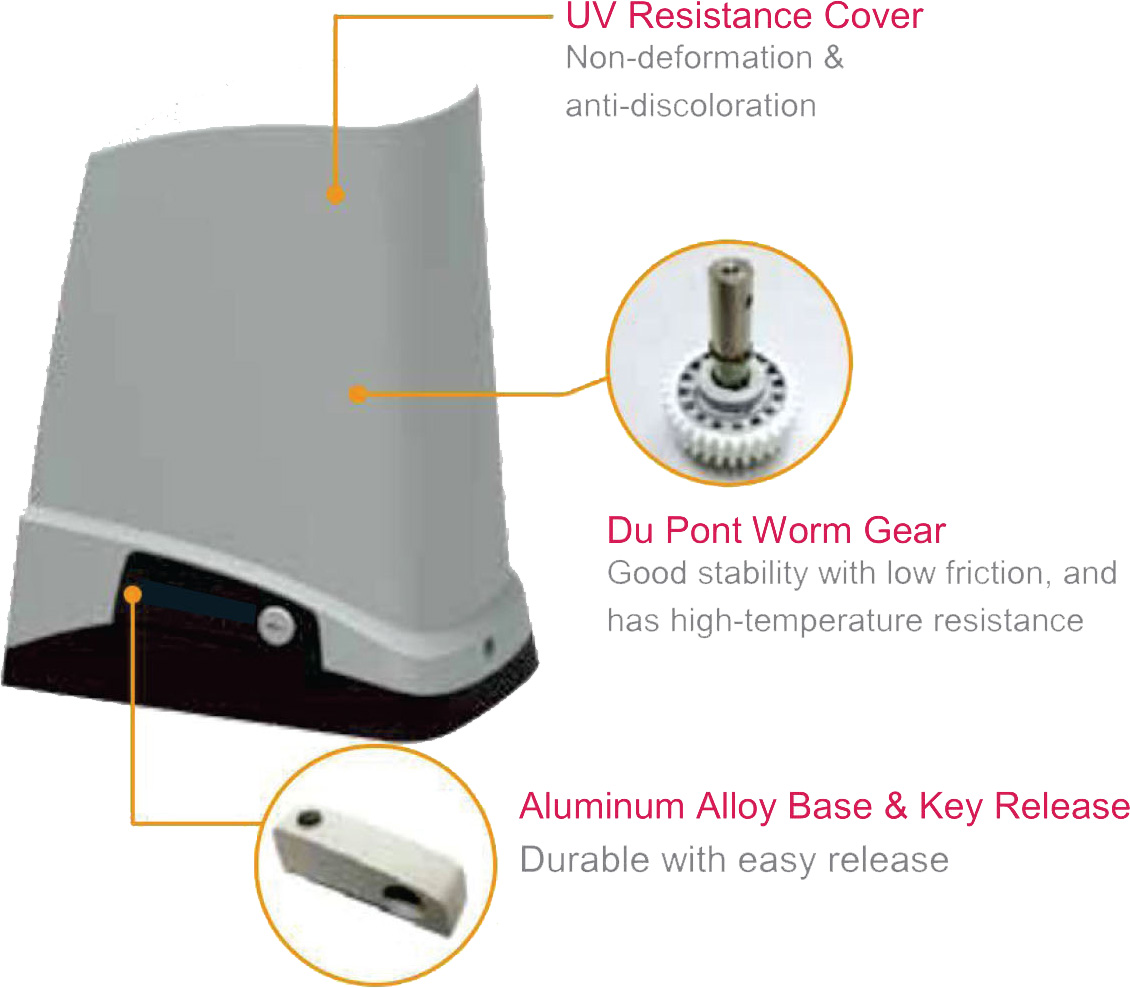

Gear motors openers various parts

Can be equipped with Encoder (optional) to provide accurate slow down and stopping point.

The special design in Over Current Stop for SAFETY Purpose.

Slow Stop: buffer time motor stop to avoid the vigorus abrasion and reduces its durability

Slow Down (Decelartion): automatically slow down when gates run to the end for avoiding collision.
