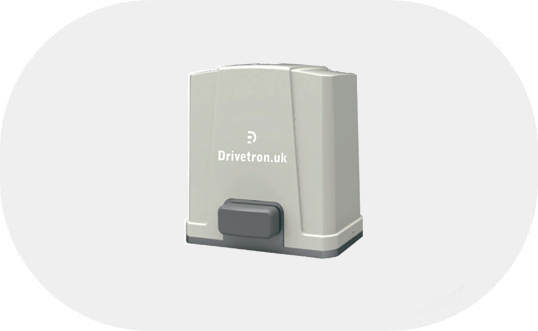

DT500-DCH
GL-1 Flashing Light
KS-1 Key Selector
PB-1 Push Button
PC-1 Photocells
GR-2 4-Channel Transmitter
Receiver Box
Rack
Model
Input Power Supply
A/C 230 V/50Hz
Gear type
Worm Gear
Peal thrust
5500N
Absorbed Power
60W
Motor Power Supply
24 Vdc
Maximum gate Weight
500kg
Maximum gate length
6meters
Maximum operating current
5.5A for maximum 10secs
Operating Temperature
-20 C~+50 C
Dimension LxWxH mm.
250x170x265
Weight
8kg
Speed
21.9 cm/sec
Incorporated with DC Motor for intensive operations, built in battery backup provision for uninterrupted operations of gate during power failure/blackout.

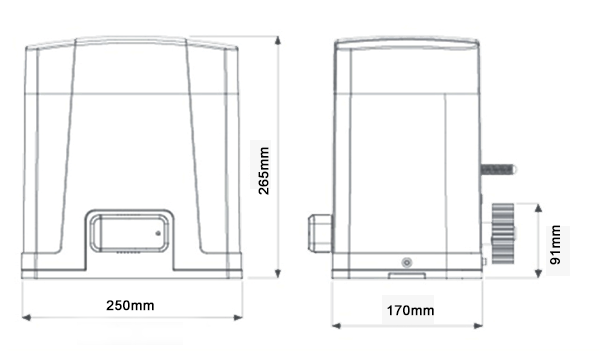

Dimensions of the Gear motors
Equipped with encoder for motor soft start and accurate soft stop
Multilevel current setting for obstacle detection during gate operation, ensures safety
Multilevel speed adjustment option available for speed upto 26cm/sec
Easy remote learning without opening motor casing
Security by auto close function
