Swing Gate Motors

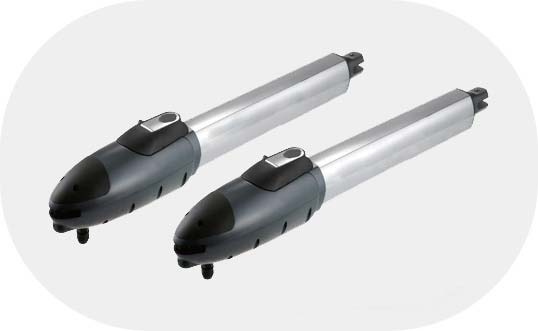

DT 330
ODC16 Control Box
GL-1 Flashing Light
KS-1 Key Selector
PB-1 Push Button
PC-1 Photocells
OEL-1 Electric Latch & Stopper
RB-1 Receiver Box
GR-2 4-Channel Transmitter
- Heavy 350 kg: Maximum weight / length per gate leaf : 350 kg / 4m.
- 24V DC electro-mechanical gear motors for residential use.
- Worm gear provides durability and silence in motor operation.
- Slowdown during the end of opening and closing phase.
- Single-gate or dual-gate installation is optional.
- Hall sensor imbeded is optional.
- Manual release with real key during power failure.
Model
Power Supply AC
230V
DC Supply for control unit
24V DC
Maximum Gate Weight
350 kg per leaf
Maximum Gate Length
4 meters
Operating Temperature
-20℃~+50℃
Dimension
844 x 115 x 106mm
Weight
6.25 kg
