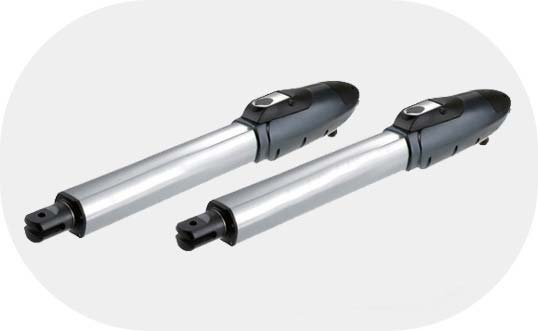

- Medium 300 kg: Maximum weight / length per gate leaf : 300 kg / 3m.
- 24V DC electro-mechanical gear motors for residential use.
- Worm gear provides durability and silence in motor operation.
- Slowdown during the end of opening and closing phase.
- Single-gate or dual-gate installation is optional.
- Hall sensor imbeded is optional.
- Manual release with real key during power failure.
Model
Power Supply AC
230V
DC Supply for control unit
24V DC
Maximum Gate Weight
300 kg per leaf
Maximum Gate Length
3.5 meters
Operating Temperature
-20℃~+50℃
Dimension
844 x 115 x 106mm
Weight
6 kg
