Curtains Motors
CM02R-AC
RW2 - Double channel touch screen receiver (white/black)
RW5 - Five channel stick-on transmitter (white/black)
RH2 / RH5 - Double/Five channel touch screen transmitter (Black)
RH2 / RH5 - Double/Five channel touch screen transmitter (White)
Model
Characteristics
CM02R-AC
Direct current control
Dry contact
Stroke memory
Inbuiltreceiver +transformer
Manual mode
Motorized mode
Pulling start the motor function

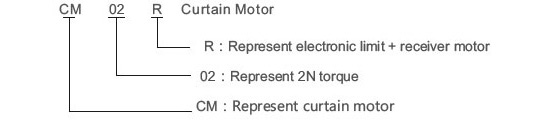

Interpretation of item
Item code
CM02R-AC
Item Description

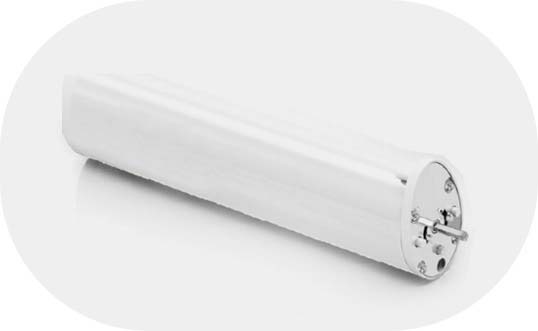

CM02R Curtain Motor
Torque(N.m)
2
Power(w)
80
Speed(cm/s)
20
Working voltage(v)
200-230
Frequency(Hz)
50/60
Rated evolution(rpm)
110
Straight rail splicing maximum length(m)
12
Motor weight(kg)
1.4
